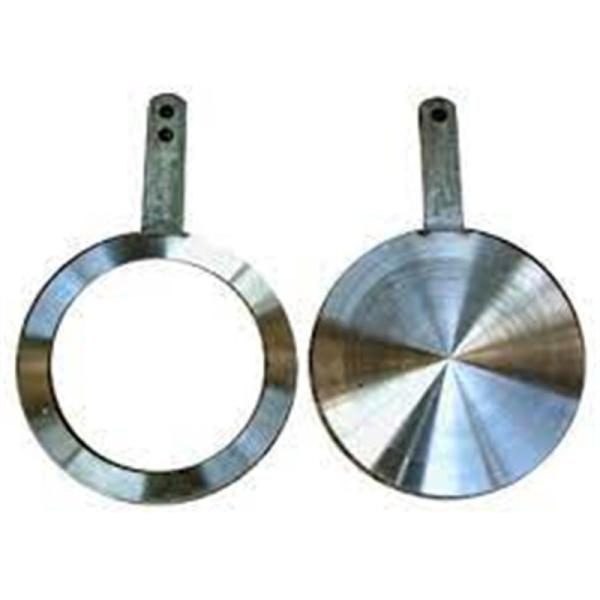

    Alloy Steel F11 F12 F22 Paddle Blank Flanges Used For Flow Control ASME B16.5

    Ask Lasest Price
    Brand Name : Metal
    Model Number : Alloy 625
    Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
    Price : Negotiation
    Payment Terms : L/C, , T/T, Western Union
    Supply Ability : 1000 PCS PER MONTH
    Delivery Time : 15 Work days
    • Product Details
    • Company Profile

    Alloy Steel F11 F12 F22 Paddle Blank Flanges Used For Flow Control ASME B16.5

    Alloy Steel F11 F12 F22 Paddle Blank Flanges Used For Flow Control ASME B16.5


    1. Spectacle Flanges, Single Blinds, and ring spacer are crucial pipeline accessories when a section of the pipeline may need to be isolated from the rest. Single Blinds or Blanks are positive shut-off devices that prevent flow through a pipeline.


    2. The products a according to the requirements of 590 can be used to the RF Flange as following standard: ANSI B16.5, SH3406, IS07005-1, GB9112~9124, HG20615.


    3. The corrosive capacity is involved in the thickness of paddle blind, spacer and Figure 8 & the corrosive capacity is 1.3mm for c.s. Low-alloy & low-temperature steel and O for s.s.


    4. Adopted to flat spacer. Adjust the thickness if adopt other spacer.

    Product Name

    Spectacle Blind Flange

    Standard

    ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, 7S-15, 7S-43, 605, EN1092

    Type

    Spectacle Blind Flange Special Flange: According to the drawing Picture

    Materials

    Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675, Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276


    Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L,

    Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H


    Duplex Steel: ASTM A182 F51, F53, F55


    Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

    ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8

    Copper Alloy:ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718

    Inconel Alloy Steel:ASTMAB564, NO8800/Alloy800, NO8810/Alloy800H, NO8811/Alloy 800HT

    Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

    Dimension

    (150#,300#,600#): DN15-DN1500
    900# : DN15-DN1000
    1500#: DN15-DN600
    2500#:D N15-DN300

    Marking

    Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

    Test

    Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement

    Brand

    TOBO

    Certificates

    3.1. (Any third party certificate should be clarified before order)
